Vatsal Alloys is the most top 20MnCr5 Steel manufacturers in Pune, suppliers, dealers, and exporters in Pune. We are providing best quality of 20MnCr5 is considered low-alloy case-hardening steel that presents high value in wear resistance and toughness and good machinability. With a composition that harmonizes manganese and chromium, the 20MnCr5 can withstand surface hardness after its carburization. The core provides a tough and ductile core.
Such steel is used in the manufacture of components that require extremely high strength and durability, including gears, shafts, and camshafts, among others. This gives 20MnCr5 reason for many markets due to its mechanical properties, depth harden ability, and quite good fatigue resistance in applications like automobile, aerospace, and heavy machinery. 20MnCr5 steel guarantees the best performance and reliability in precision engineering-from industrial applications-hence it would be the best option for such critical components.
Types of 20MNCR5:
Being the top 20MNCR5 suppliers and manufacturers in Pune, we are providing the best quality of 20MNCR5 Alloy Steel Flats such as:

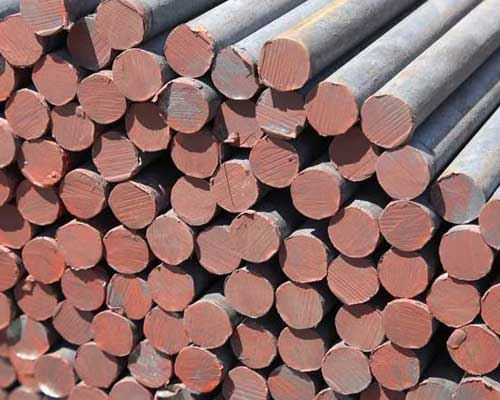

- Round Bars: Versatile with varied diameters and forms (hot-rolled, cold-drawn bright, forged). Ideal for precision machining and structural applications due to their uniform cross-section and smooth surface.
- Flat Bars: Rectangular and precisely dimensioned with smooth, flat surfaces. Essential for fabrication, industrial processing, and detailed manufacturing operations.
- Square Bars: Robust and stable with equal sides and a square cross-section, ensuring even load distribution and long-term structural integrity.
- Hex Bars: Six-sided bars providing superior grip and torque resistance. Primarily used in fasteners and applications requiring rotational stability.
- Bright Bars: Precision-machined with a smooth, polished finish, guaranteeing high dimensional accuracy and exceptional surface quality for critical applications.
- Black Bars: Cost-effective, hot-rolled bars with a rough, unmachined surface, suitable for applications where surface finish is not a primary concern.
Technical Specifications of our 20MNCR5
For detailed information of our 20MNCR5 suppliers and exporters in Pune, we have mentioned below a technical sheet such as:
| Property | Value |
|---|---|
| Grade | 20MnCr5 / 1.7147 / EN10084 / AISI 5120 |
| Tensile Strength | 800 - 1100 MPa |
| Yield Strength | 500 - 700 MPa |
| Hardness HRC | 58 - 62 HRC After Case Hardening |
| Impact Strength | 25 - 40 Joules Charpy V-Notch |
| Elongation % | 10 - 15% |
| Density | 7.85 g/cm³ |
| Modulus of Elasticity | 210 GPa |
| Thermal Conductivity | 42 W/mK |
| Heat Treatment | Normalized, Case Hardened, Quenched & Tempered |
| Machinability | Good, improves in annealed condition |
| Wear Resistance | High, enhanced after case hardening |
| Chemical Composition % | C 0.17-0.22, Mn 1.00-1.30, Cr 1.00-1.30, Si 0.15-0.35, P≤0.035, S≤0.035 |
Features and Benefits of 20MNCR5
One of the former 20MNCR5 exporters and suppliers in Pune, these all types of 20MnCr5 Alloy Steel are filled with new features and benefits such as:
- Case-Hardening: 20MnCr5 is a low-alloy steel designed for case-hardening, creating a robust, wear-resistant outer layer while maintaining a tough, impact-resistant core, significantly enhancing component durability.
- High Surface Hardness and Wear Resistance: Through carburizing heat treatment, 20MnCr5 achieves exceptional surface hardness, making it ideal for components like shafts and gears exposed to constant pressure and movement.
- Good Ductility and Fatigue Strength: Its fine-grain microstructure ensures excellent ductility, preventing deformation under stress, and high fatigue resistance, crucial for cyclic loading applications.
- Versatility: 20MnCr5's balanced properties make it a versatile material, widely used in manufacturing gears, shafts, camshafts, and other mechanical parts demanding both hardness and toughness.
- Machinability: In its annealed state, 20MnCr5 offers good machinability, facilitating efficient cutting, drilling, and shaping with minimal tool wear.
Applications of our 20MNCR5
As we are leading 20MnCr5 manufacturers and exporters in Pune, are majorly used in multiple types of industrial sectors such as:
- Gears: 20MnCr5 is the premier material for gears in automotive transmissions, industrial gearboxes, and heavy machinery, offering exceptional wear resistance and high-temperature durability for extended service life under extreme conditions.
- Shafts: Essential in power transmission systems, 20MnCr5 provides the high load-bearing capacity and fatigue resistance needed for axles and rotating parts, ensuring smooth, reliable operation and longevity.
- Piston Bolts and Spindles: 20MnCr5's high core tensile strength and superior wear resistance make it ideal for critical components in high-performance engines and precision machinery, withstanding demanding cyclic loads.
- Tractor and Machinery Parts: In the harsh environments of agricultural and industrial machinery, 20MnCr5 is vital for connecting rods, mechanical control parts, and structural elements, delivering the necessary robustness and reliability.
- Railway and Mining Machinery: 20MnCr5 provides high-strength and anti-wear properties for transmission shafts, steel balls, rollers, and shaft sleeves, crucial for the demanding applications in railway and mining operations.
Vatsal Alloys is a leading 20MnCr5 manufacturers in Pune, suppliers, dealers, and exporters in Pune. We are into alloy steel products that are completely premium products. Our know-how in metallurgy has enabled us to manufacture products that offer exceptionally high manufacturing precision along with superior wear resistance and durability. We also offer various rounds, flats, squares, and hex bars of this beautiful 20MnCr5 steel variety, which are to be utilized in several industries. Quality assurance on the products, reasonable prices, prompts delivery, and we can assure full reliability and satisfaction. Trust to get some of the best 20MnCr5 steel, with expert guidance and service backing.
